SS-30™
Anti-Seize & Thread Lubricant

SS-30™ literally copper plates mating and sliding surfaces to provide protection against seizure, galling, and heat-freeze. SS-30's high content of copper particles prevents metal-to-metal contact, maintaining lubrication qualities under wide variations of temperature, expansion, contraction and cyclic loadings.

SS-30 contains a high content of micro size, pure copper flakes that are homogenized into a complex grease-base. It contains no lead or graphite, does not require mixing, and will not separate, settle out, harden, or dry out in storage. It is fortified with anti-oxidants and corrosion inhibitors.

SS-30 is easy to use, brushes on readily, and adheres tenaciously - even on wet or oily surfaces. It brushes evenly into thread roots and over any surface, assuring complete and efficient coverage.

SS-30 is specially formulated for subsea fittings, protecting them from pitting and breakage. It works equally well on a wide range of similar and dissimilar metals and mating parts, including steel, cast iron, brass, plastics, titanium gasket materials and packings. SS-30 is conductive and works well in protecting electrical contacts from corrosion.

Benefits

  • Lead Free
  • Protects against seizure, heat-freeze, galling, rust and corrosion
  • Brushes on easily
  • Highly adhesive on both wet and dry surfaces
  • “Copper Plates” to prevent metal-to-metal contact
  • Conductive

Specifications

  • Base Materials
    • Clay / Petroleum
  • Friction /
    Nut-Factor
    • (Nut-Factor) 0.13-0.14 - I” B-7 Studs @ 60k – 80k psi Contact Stress
  • Certifications
    • MIL-PRF-907F
  • Service Rating
    • -65°F to 1800°F
    • -54°C to 982°C

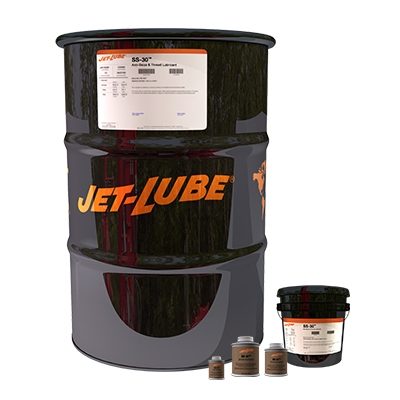

Product Numbers

United States

  • 12504 - 1 LB - 12/case Brushtop Can - 1 LB
  • 12502 - 1/2 LB - 12/case Brushtop Can - 1/2 LB
  • 12555 - 1/4 LB - 24/case Brushtop Can - 1/4 LB
  • 12529 - 50-55 GAL Drum - 500 LB
  • 12523 - 1 GAL Pail - 10 LB

United Kingdom

  • JA12504 - 1 LB - 12/case Brushtop Can - 454 G
  • JA12502 - 1/2 LB - 12/case Brushtop Can - 227 G
  • JA12555 - 1/4 LB - 24/case Brushtop Can - 113 G
  • JA12529 - 50-55 GAL Drum - 226.8 KG
  • JA12555 - 1 GAL Pail - 4.54 KG

Canada

  • 12504CA - 1 LB - 12/case Brushtop Can - 454 G
  • 12502CA - 1/2 LB - 12/case Brushtop Can - 227 G
  • 12555CA - 1/4 LB - 24/case Brushtop Can - 113 G
  • 12529CA - 50-55 GAL Drum - 226.8 KG
  • 12555CA - 1 GAL Pail - 4.54 KG
