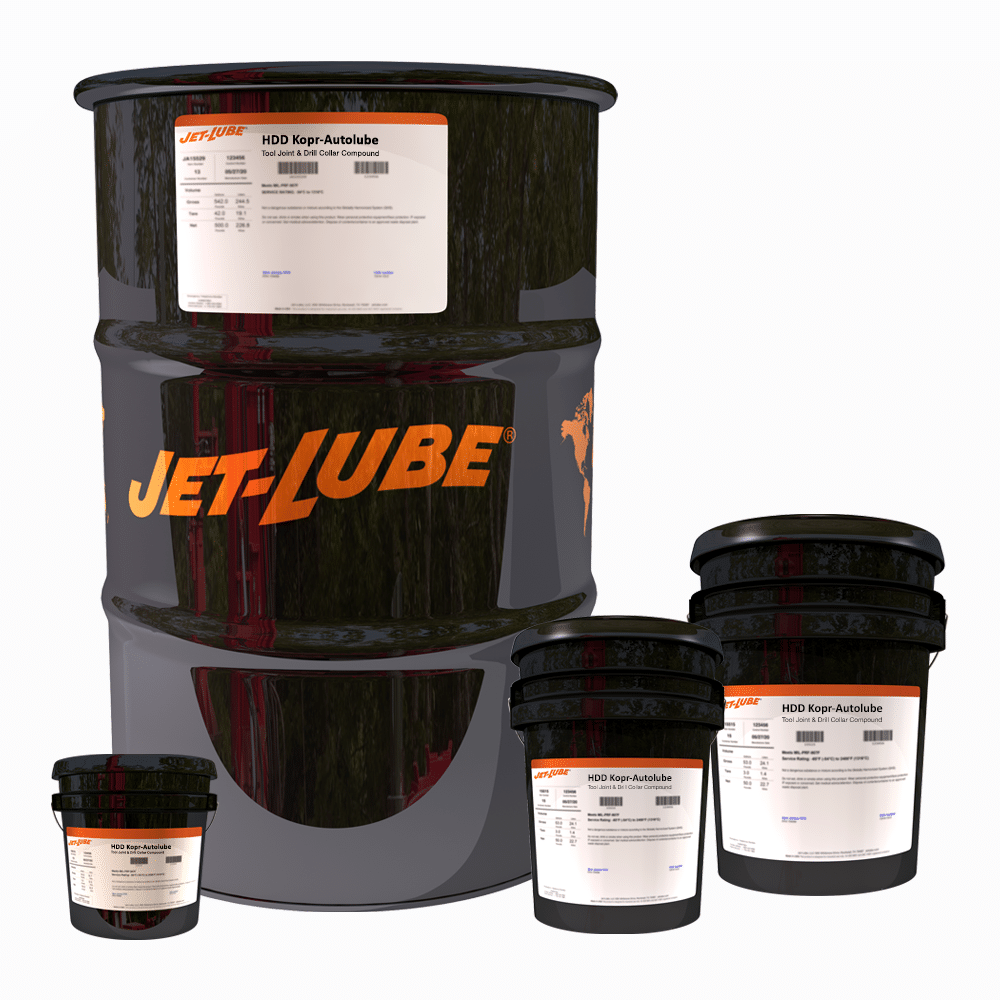

HDD™ Autolube
Horizontal Directional Drilling Tool Joint & Drill Collar Compound

A premium-quality, unleaded compound containing cooper flake, graphite, and other natural extreme pressure and anti-wear additives. HDD AUTOLUBE uses the same solids package formulated to prevent excessive circumferential makeup by increasing the coefficient of friction under compressive forces as standard KOPR-KOTE but in a smaller particle size range to accommodate automatic application systems.


  • Contains no lead or zinc
  • Extreme pressure additives
  • Rust & corrosion inhibitors
  • Sticks to wet joints
  • Smooth grease base for brushability & stability over a wide temperature range
  • Consistent makeup
  • Unequalled resistance to downhole makeup
  • Specially formulated to meet the requirements of the auto-lube system on most major HDD rigs
  • Low pour point oil for optimum low temperature performance


  • Base Materials
    • Anhydrous Calcium / Petroleum
  • Certifications
    • Not classified as marine pollutant – DOT Approval CA2004080025.
    • Conforms to assembly bill 1953
  • Service Rating
    • -55°C to 149°C
    • -65°F to 300°F

Product Numbers

United Kingdom

  • JA23923 - 1 GAL Pail - 4.3 KG
  • JA23911 - 2 GAL Pail - 8.6 KG
  • JA23915 - 5 GAL Pail - 21.8 KG
  • JA19793 - 5 GAL Pail (Metal) - 21.8 KG
