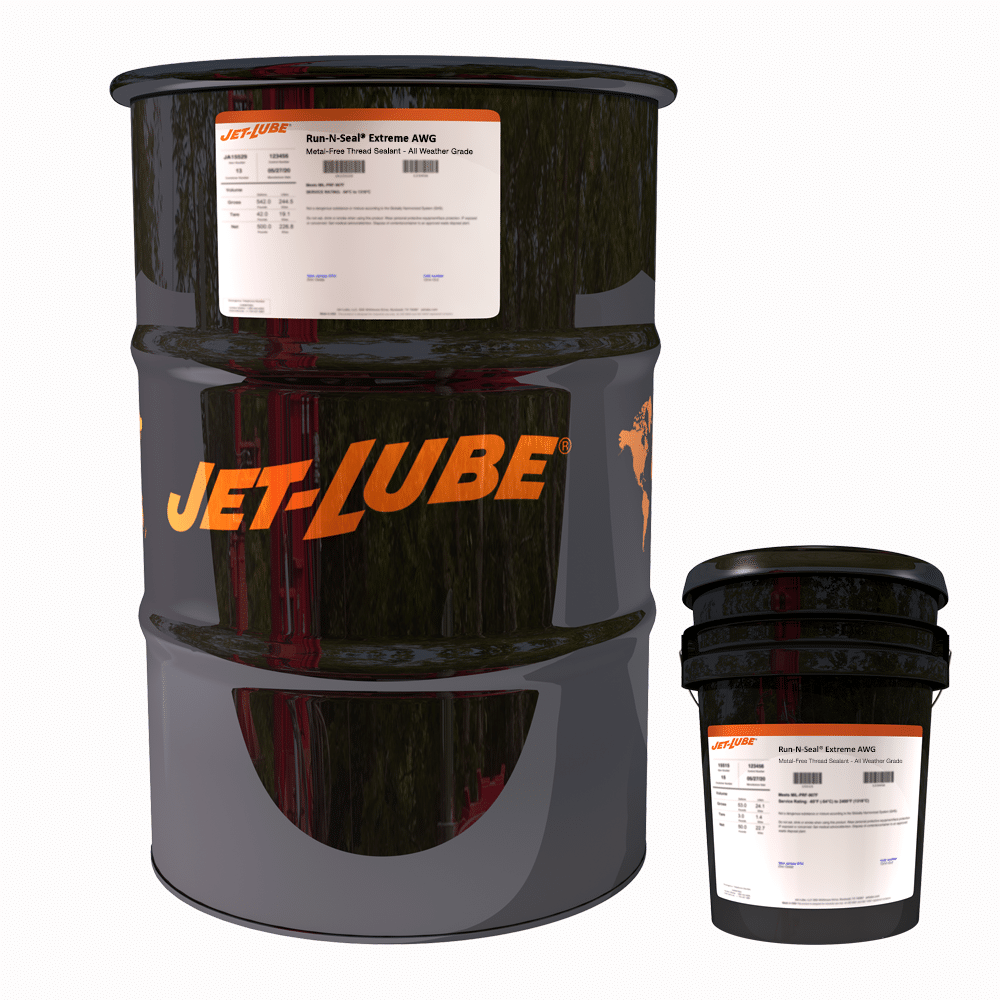

Run-N-Seal® Extreme™ AWG
Metal-Free Thread Sealant - All Weather Grade

A patented, metal-free, high pressure sealant alternative for API-MODIFIED for OCTG 8-round and buttress connections. RUN-N-SEAL EXTREME AWG contains graphite and other non-metallic, inorganic, anti-wear additives blended into a state-of-the-art, all weather, rust inhibiting complex soap based grease. Contains a large volume of solids enhanced by a higher concentration of large-sized particles. The improved distribution of particle sizes and volume of solids provides an excellent seal in large and small diameter, non-shouldered threads. The complex soap grease provides a high melting point, ensures brushability over a wide range of temperatures and has excellent inherent water resistance.

Benefits

  • Metal-free
  • Enhanced rust-inhibiting
  • Non-toxic
  • Contains additives for protection against rust, corrosion & oxidation
  • Sticks to wet & oily steel
  • All-weather
  • High film strength to protect against wear, galling & seizure

Specifications

  • Base Materials
    • Complex Soap / Petroleum
  • Friction /
    Nut-Factor
    • 0.9 (Relative to API-MODIFIED)
  • Certifications
    • Tested for California Code of Regulations - Title 22
    • Not classified as a hazardous waste
    • Exceeds all of the performance criteria described in API spec. 5CT.
    • Conforms with API 5A3 for use with casing, tubing, and line pipe.
  • Service Rating
    • -22°F to 446°F
    • 30°C to 230°C
    • Brushable Temperature: -40°F (-40°C)

Product Numbers

United States

  • 22323 - 1 GAL Pail - 10 LB
  • 22312 - 2 GAL Pail - 20 LB
  • 22315 - 5 GAL Pail - 50 LB

Canada

  • 22323CA - 1 GAL PAIL - 4.5 KG
