Seal-Guard™ ECF™
Premium Thread Compound

Specifically formulated to meet the performance requirements of proprietary, metal-to-metal seal, and high interference connection designs utilizing high performance materials including super chrome and high alloy steels. The smaller particle size distribution may not provide optimum seal performance on 8-round and buttress thread forms. SEAL-GUARD ECF has an advance base containing a carefully selected balance of synthetic and vegetable oils with Jet-Lube extreme base grease thickener technology coupled with innovative solid lubricants. The result is superior lubrication under high loads with galling resistance equivalent to heavy metal based compounds in a totally metal-free formulation. This patented technology provides a high affinity to metal surfaces with a low added solids content. Ideal tubing connections - premium.

Benefits

  • Superior lubrication under high loads with galling resistance
  • Patented, cutting-edge technology
  • High affinity to metal surfaces
  • Film that gives consistent frictional performance
  • Biodegradable
  • Metal-free
  • Sticks to wet or oily threads

Specifications

  • Base Materials
    • Complex / Synthetic & Vegetable Oils
  • Friction / K-Factor
    • 1.0 to 1.2 (Relative to API MODIFIED)
  • Certifications
    • Ospar Commission – Harmonized Offshore Chemical Notification Format (HOCNF) CLASSIFICATION: “Yellow” rating for Norway CLASSIFICATION: “E” for The United Kingdom and The Netherlands Denmark PR#: 2351246
    • Eco-Certified
  • Service Rating
    • -20°F to 450°F
    • -29°C to 232°C

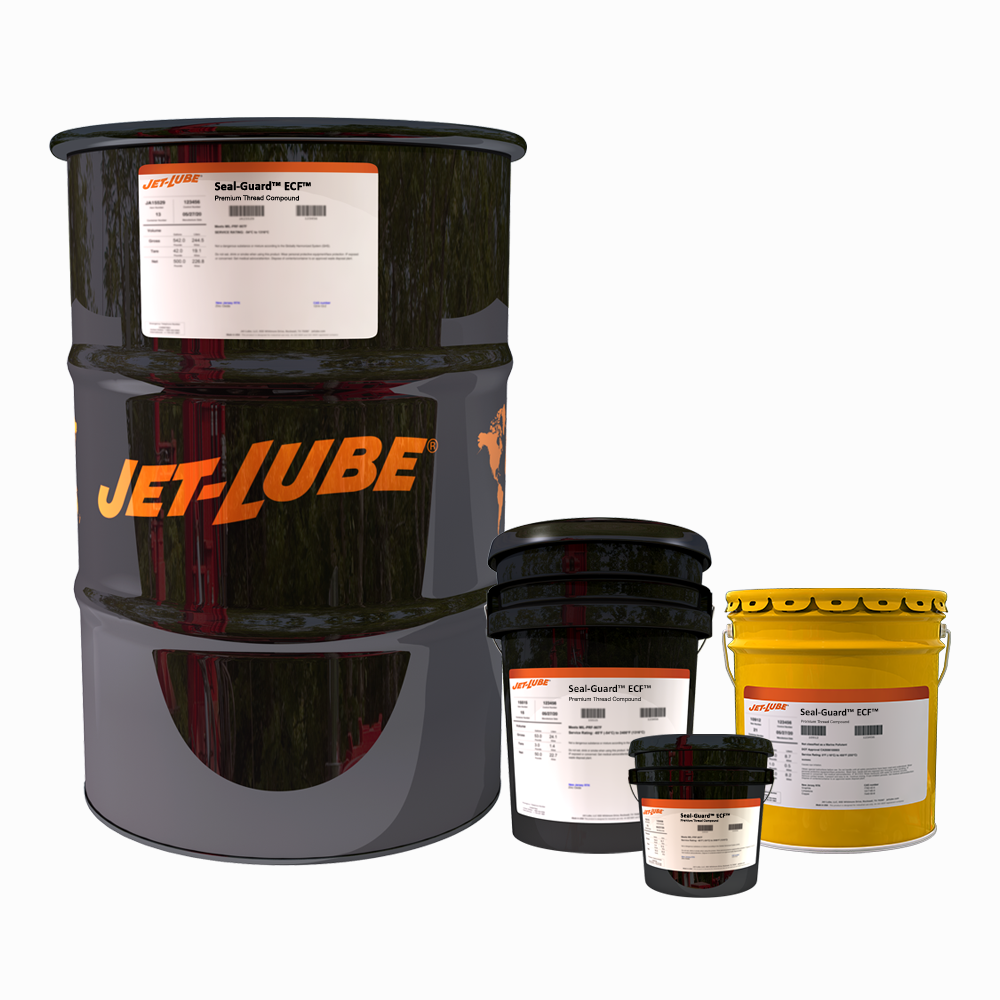

Product Numbers

United States

  • 20929 - 50-55 GAL Drum - 400 LB
  • 20915 - 5 GAL Pail (Metal Yellow) - 35 LB
  • 20923 - 1 GAL Pail - 8 LB
  • 20915L - 5 GAL Pail (w/Liner) - 44 LB

United Kingdom

  • JA20929 - 50-55 GAL Drum - 181.4 KG
  • JA20915 - 5 GAL Pail (Metal Yellow) - 20 KG
  • JA20923 - 1 GAL Pail - 3.63 KG
  • JA20915L - 5 GAL Pail (w/Liner) - 20 KG

Canada

  • 20929CA - 50-55 GAL Drum - 181.4 KG
  • 20915CA - 5 GAL Pail (Metal Yellow) - 20 KG
  • 20923CA - 1 GAL Pail - 3.63 KG
  • 20915LCA - 5 GAL Pail (w/Liner) - 20 KG
